Article no.: 10-078
All product details

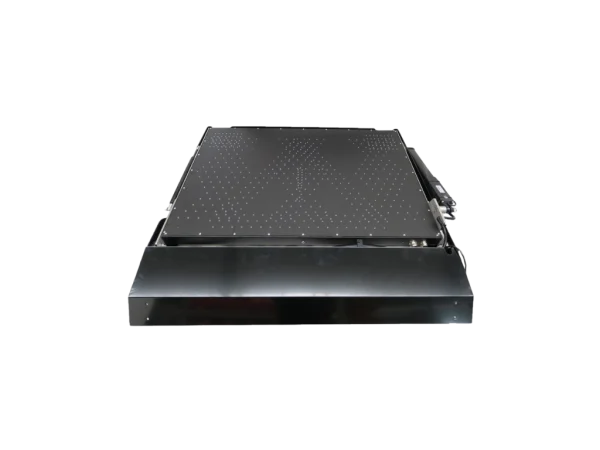

MobiLED-Transport exceptional DSH

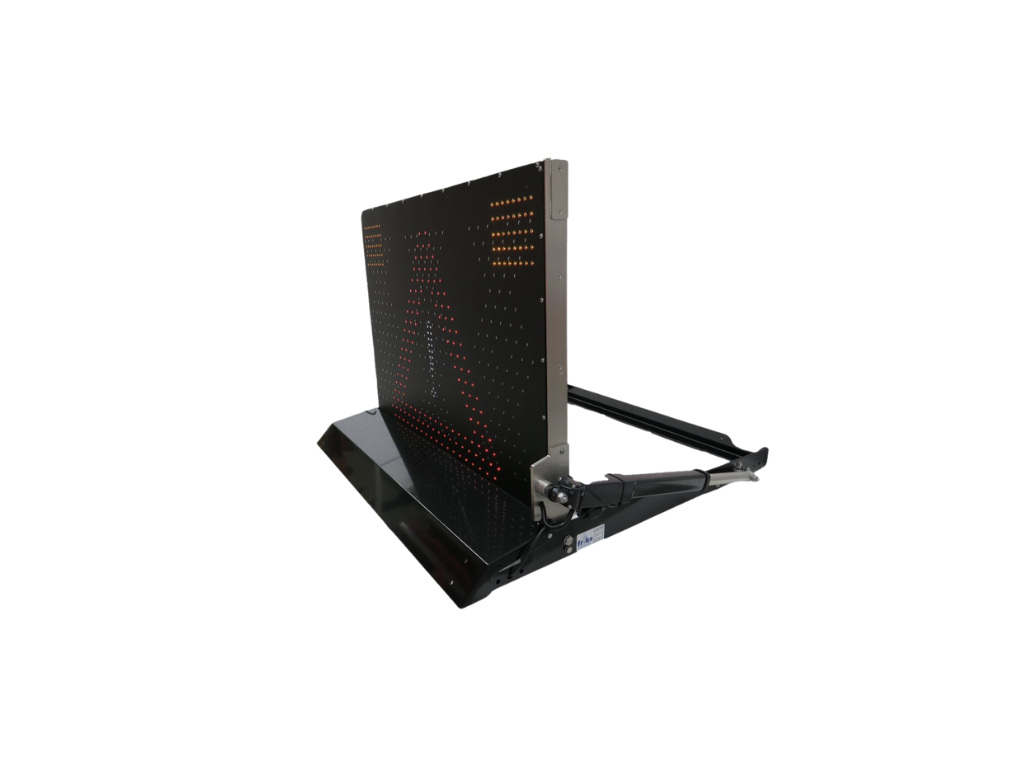

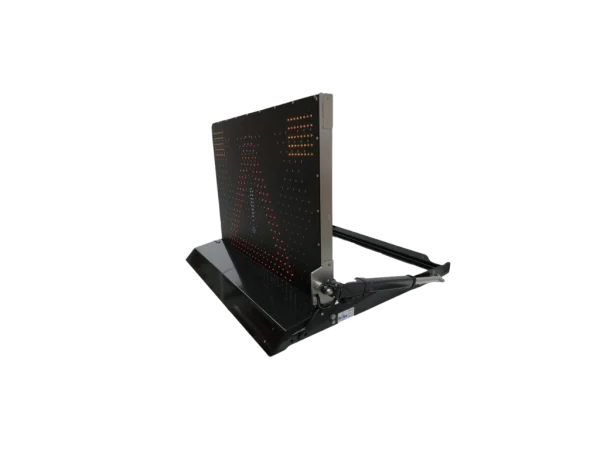

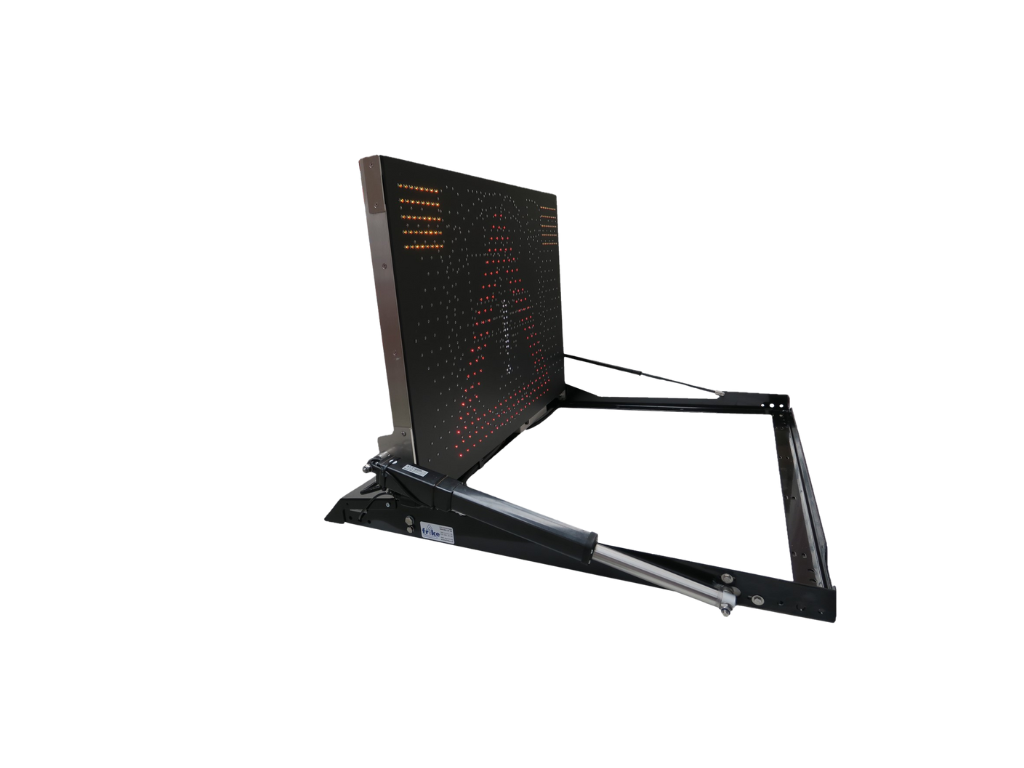

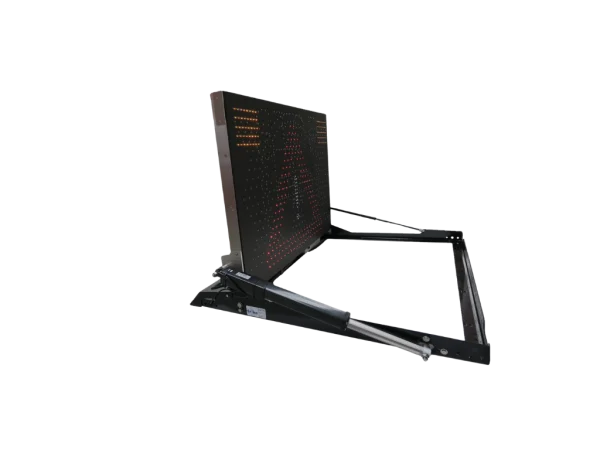

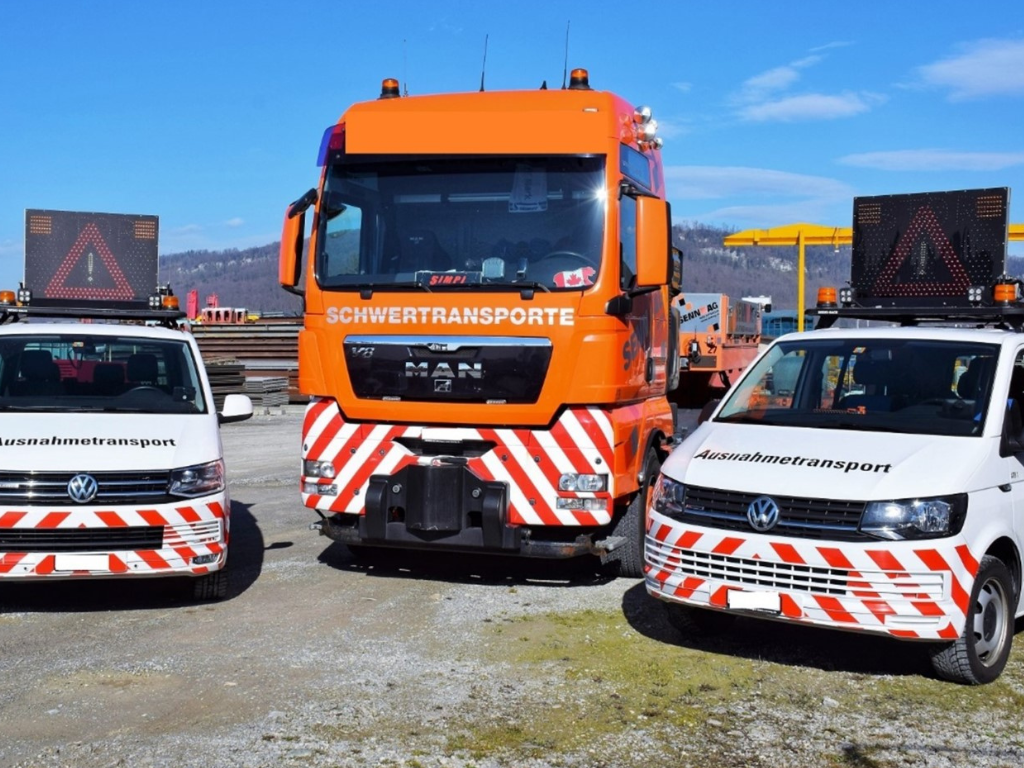

Our MobiLED LED roof warning systems are successfully used in maintenance vehicles, work vehicles and commercial vehicles, as well as for escort vehicles for exceptional transports. They impress with their high luminosity, durability and weather resistance. This MobiLED is equipped with an electric lifting device for up and down, as well as an LED display on both sides.
Product details
Description
Description

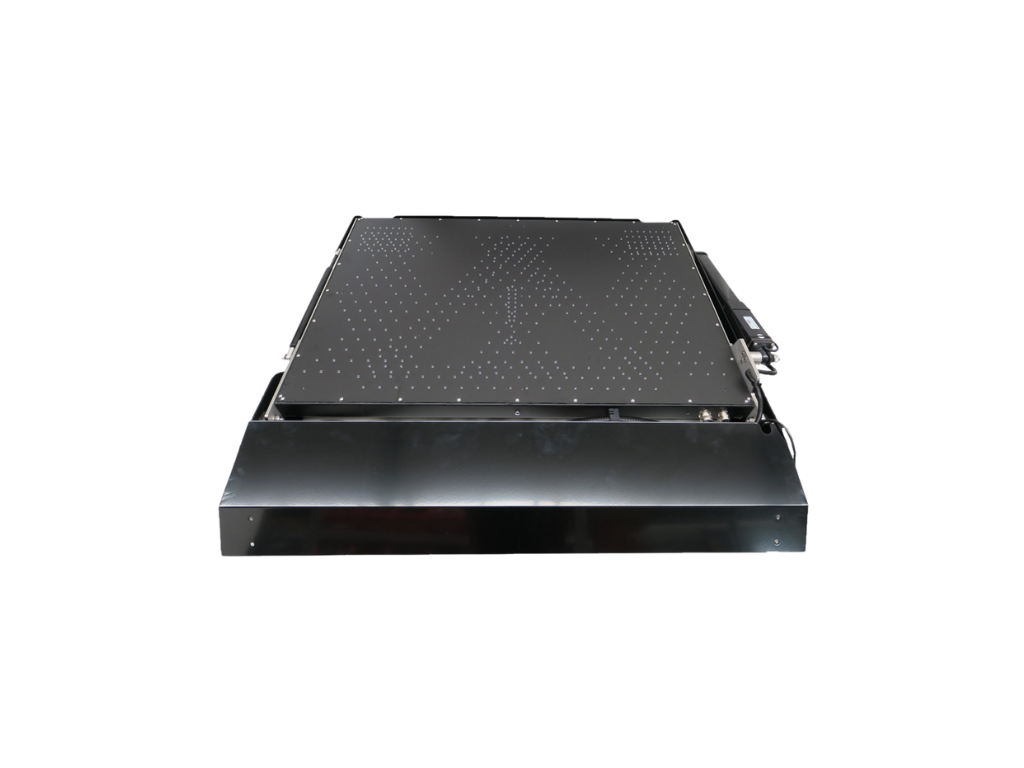

Our MobiLED LED roof warning systems are successfully used in maintenance vehicles, work vehicles and commercial vehicles. They impress with their high luminosity, durability and weather resistance. Mounted on the vehicle roof with a lifting motor. The MobiLED are very stable and vibration-resistant. Various display options ensure maximum visibility and safety in road traffic.
- Dimension LED stencil: 1000mm x 710mm
- Back display symbols:
- ATTENTION (1.30)
- No overtaking (red/white LED)
- No overtaking for trucks (red/white LED)
- Mounting arrow left + right (LEDs yellow)
- Double arrow (LEDs yellow)
- 2 pcs. LED flasher square (LEDs yellow)
- Front display symbols:

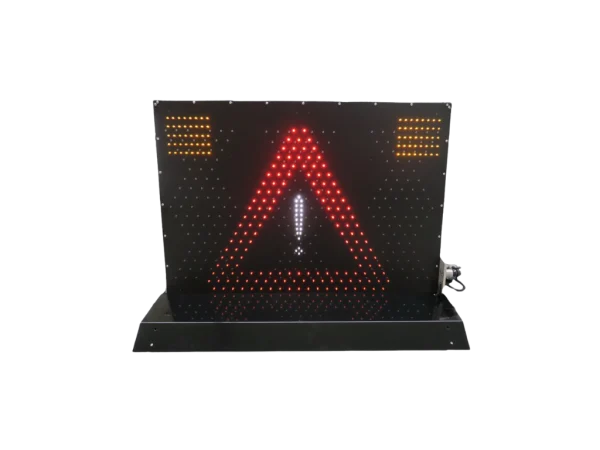

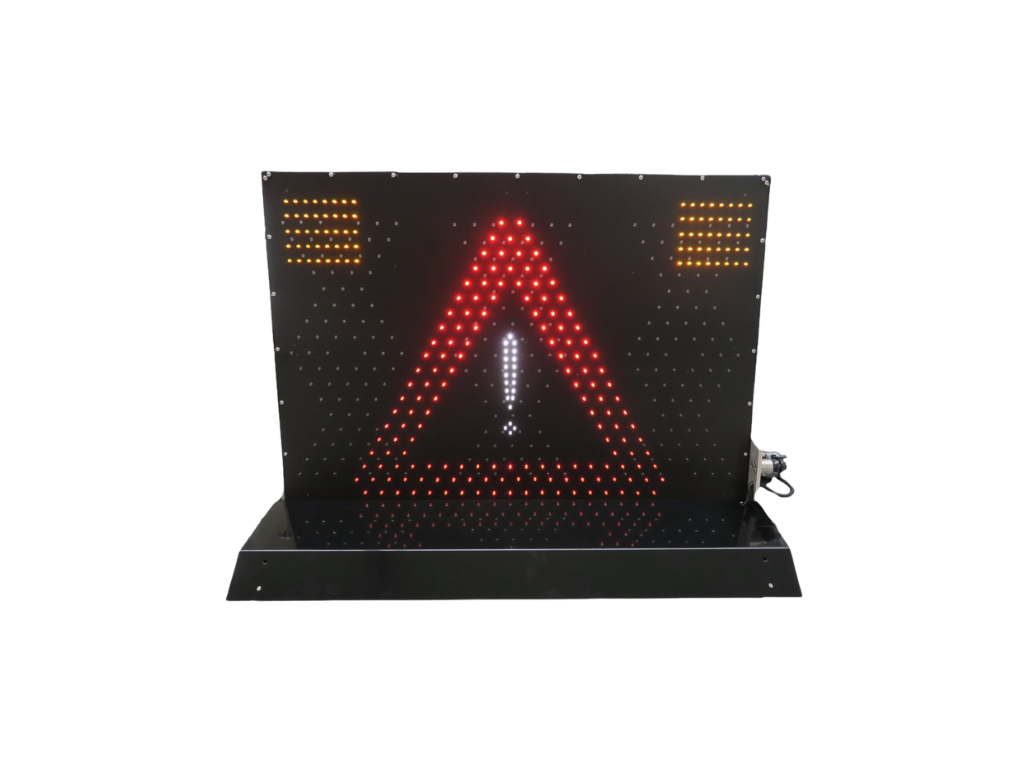

- ATTENTION (1.30)
- Mounting arrow left + right (LEDs yellow)
- Double arrow (LEDs yellow)
- 2 pcs. LED flasher square (LEDs yellow)
Technical data
Zusätzliche Information
| Dimension (LxWxH) | 1'150mm x 880mm x 175mm |
|---|---|
| Weight | 29kg |
| Light source | LED |
| Power supply type | Battery |
| Operating voltage | 12 VAC |
| Current consumption | 4-20A |
| Current consumption day | 8A |
| Current consumption night | 4A |
| Night setback | yes |
| Setup device | yes |
| Color | black |
| Protection | IP54 |
| Assembly | Screw |
| Material | Aluminum, Steel |
| Remote control | Radio remote control |
| Display options | Symbols, Symbols front and back |
| Height | 772mm |
